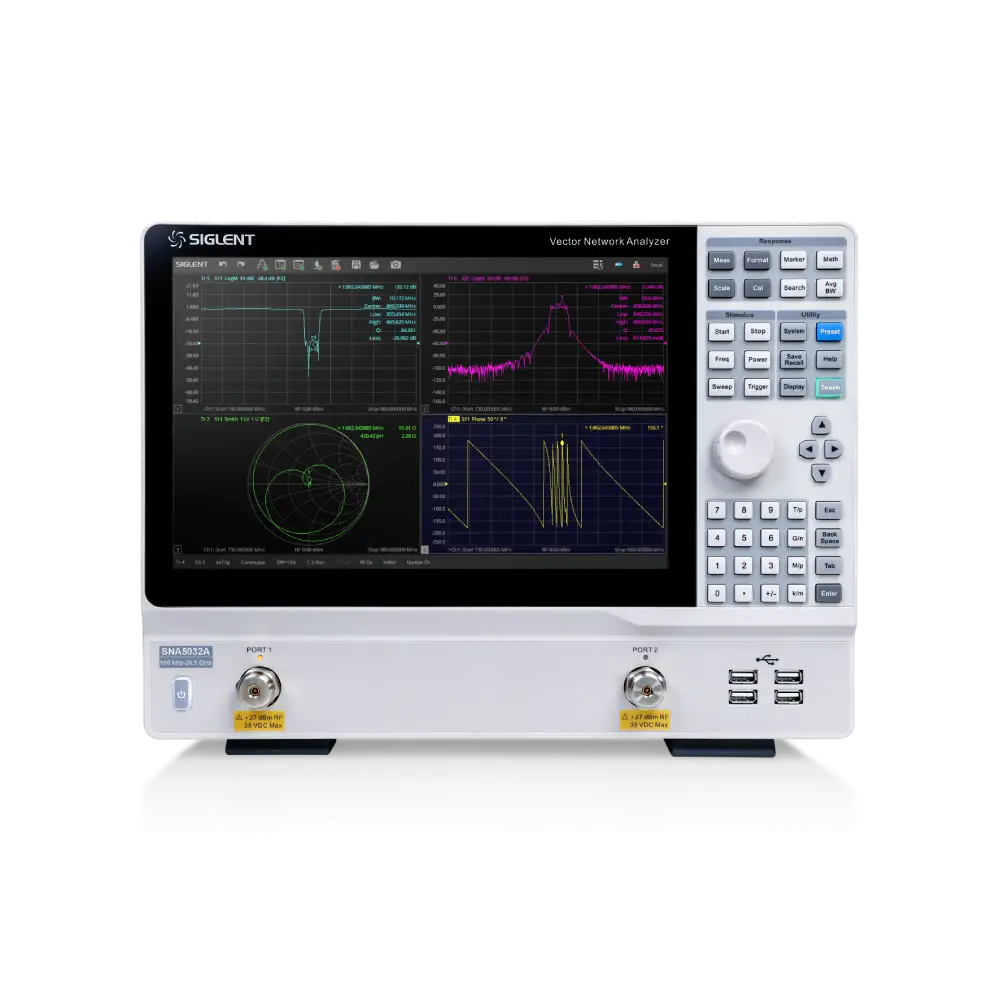

SNA5000A Series Vector Network Analyzer
- Frequency range: 9 kHz – 8.5 GHz and 100 kHz – 26.5 GHz
- Frequency resolution: 1 Hz
- Setting Range of Output Level: -55 ~ +10 dBm
- Dynamic Range: 125 dB
- 2/4-ports: S-parameters, Balance Measurements, Time Domain
- Measure: Q-factor, bandwidth and Insertion Loss
- Power source calibration compatible with R&S NRPxxA/AN and Keysight U2000A/B series USB power meters
- Compatible with several manufacturers ECal kits (contact us for more information)
תיאור
Product Overview
סדרת SNA5000A של Vector Network Analyzers מבית סיגלנט כוללת טווח תדרים של 9 קילוהרץ עד 8.5 גיגה-הרץ, ו-100 קילוהרץ עד 26.5 גיגה-הרץ, ותומכת במדידות פרמטרי פיזור 2/4 פורטים, פרמטרים דיפרנציאליים ומדידות בתחום הזמן. סדרת SNA5000A של VNAs היא כלי מדידה יעיל לקביעת מקדם Q, רוחב פס ואיבוד החדרה של מסננים. הן כוללות המרת עכבה, הזזת מישור המדידה, בדיקות גבול, בדיקת Ripple, סימולציית מתקן, והתאמות הסרה/הכנסה של מתאמים. ל-VNAs חמישה סוגי סריקה: Linear-Frequency, Log-Frequency, Power-Sweep, CW-Time ו-Segment-Sweep. סדרת SNA5000A תומכת גם בתיקוני פרמטרי פיזור מסוג SOLT, SOLR, TRL, Response ו-Enhanced Response, להגברת הגמישות בשימושים של מחקר ופיתוח ויישומים בתעשייה.
The SIGLENT SNA5000A series of Vector Network Analyzers have a frequency range of 9 kHz to 8.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter, and time-domain parameter measurements. The SNA5000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA5000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.
Key Features
- Frequency range: 9 kHz – 8.5 GHz and 100 kHz – 26.5 GHz
- Frequency resolution: 1 Hz
- Level resolution: 0.05 dB
- Range of IFBW: 10 Hz~3 MHz
- Setting range of output level:
-55 dBm ~ +10 dBm - Dynamic range: 125 dB
- Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
- Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement
- Internal Bias-Tee connections
- Interface: LAN, USB Device, USB Host (USB-GPIB)
- Remote control: SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
- 1-inch touch screen
- Video output: HDMI
תתי דגמים
| Model | SNA5002A SNA5004A |
SNA5012A SNA5014A |
SNA5022A | SNA5032A |
|---|---|---|---|---|
| Frequency Range | 9 kHz~4.5 GHz | 9 kHz~8.5 GHz | 100kHz-13.5GHz | 100kHz-26.5GHz |
| Ports | 2/4 | 2/4 | 2 | 2 |
| Frequency resolution | 1 Hz | |||
| Level resolution | 0.05 dB | |||
| Range of IFBW | 10 Hz~3 MHz | |||
| Setting range of output level | -55 ~ +10 dBm | |||
| Dynamic Range | 125 dB | |||
| Interface | LAN, USB Device, USB Host(USB-GPIB) | |||
| Remote control | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/WebServer | |||
| Display | 12.1-inch touch screen | |||
| Video output | HDMI | |||
| Types of calibration | Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration | |||
| Types of measurement | Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal / insertion, enhanced time-domain parameter analysis (TDR),spectrum analysis, frequency offset, scalar mixer measurement | |||
