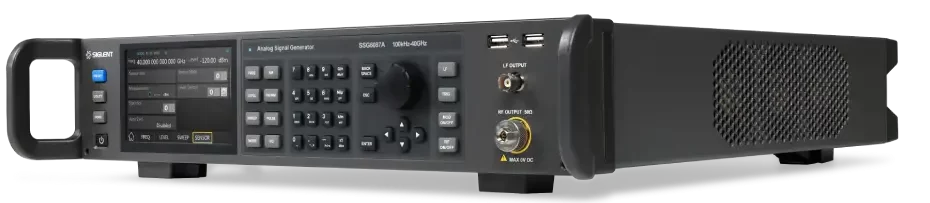

SSG6083A Microwave Analog Signal Generator
- Frequency up to 13.6 GHz
- Level setting range: -130 dBm ~ 24 dBm
- Phase Noise: -135 dBc/Hz @1 GHz, offset 10 kHz (typ.)
- Level error ≤ 0.7 dB (typ.)
- Standard AM/FM/PM modulation
- Standard OCXO and step attenuator (0 to 110 dB, 10dB step)
- Pulse modulation and pulse train generator (option)
תיאור
Product Overview
Measurement technology must exceed the desired system performance to develop, test and optimize more complex systems. The SSG6083A is designed to deliver high signal quality that meets the most stringent requirements of microwave and millimeter wave testing, while providing added value to the customer in terms of size, speed and cost.
The SSG6083A RF signal generator supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. With an OCXO hardware module built in as standard, high stability and signal accuracy are guaranteed. The device is not only an ideal local oscillator and clock source, but also a high-performance analog signal source, suitable for both R&D and manufacturing applications. SIGLANT provides a complete solution based on proven reliability and pre-sales and after-sales support. Combined with stable RF performance, flexible and clean signal, the SSG6083A is a perfect solution and a great addition to any RF engineer's work kit.
In order to develop, test and optimize more complex systems, the measurement technology must exceed the desired system performance. The SSG6083A is designed to provide high performance signal quality that meets the stringent requirements of the latest microwave and millimeter wave testing while extending customer value in size, speed, and cost.
SSG6083A RF Signal Generator supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is not only an ideal local oscillator and clock source, but also a high-performance analog signal source suitable for applications in R&D and production. SIGLENT provides a total solution backed by proven reliability and our standard 3 year warranty plus pre-sale and post-sale support. Coupled with solid RF performance, a flexible and pure signal, the SSG6083A is a complete solution that makes a great addition to any RF engineer's workbench kit.
Key Features
- Frequency up to 13.6 GHz
- Level setting range: -130 dBm ~ 24 dBm
- Excellent Phase Noise: -135 dBc/Hz @1 GHz, offset 10 kHz (typ.)
- Very low sub harmonic: < –80 dBc
- Level error ≤ 0.7 dB (typ.)
- Standard AM/FM/PM modulation
- Standard OCXO and step attenuator (0 to 110 dB, 10dB step)
- Pulse modulation on/off ratio > 80 dBc (typ.) and the rise/fall time < 15 ns (typ.) (option)
- Pulse train generator has pulse width of 20 ns ~ 300 s and as many as 2047 different pulses (option)
- Web browser remote control on PC and mobile terminals

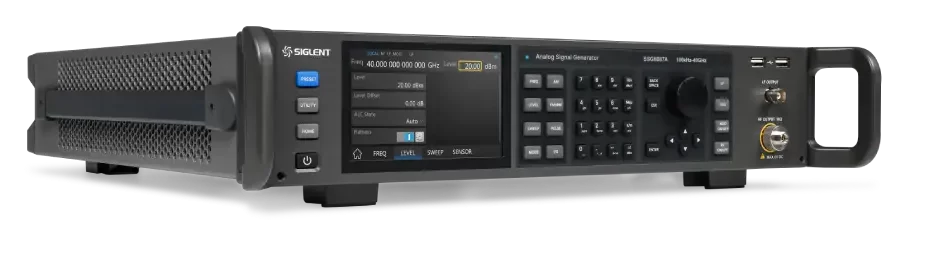

- 5 inch TFT capacitive touch screen, mouse and keyboard supported

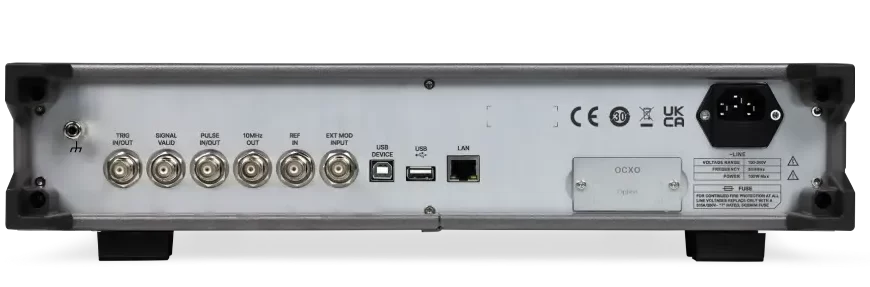

- Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
